KTM MACINA PROWLER EXONIC 2022

KTM MACINA PROWLER EXONIC 2022


Hinta
11 499,00 + toimituskulut
Sis. alv 24 %


Koko
M
Ei saatavilla
L
Ei saatavilla
XL
Ei saatavilla



Valitse kaikki ominaisuudet.
Saatavuus
Tuote ei ole myynnissä tällä hetkellä.

Varastotilanne ja saapuvat


Tuotteen kuvaus

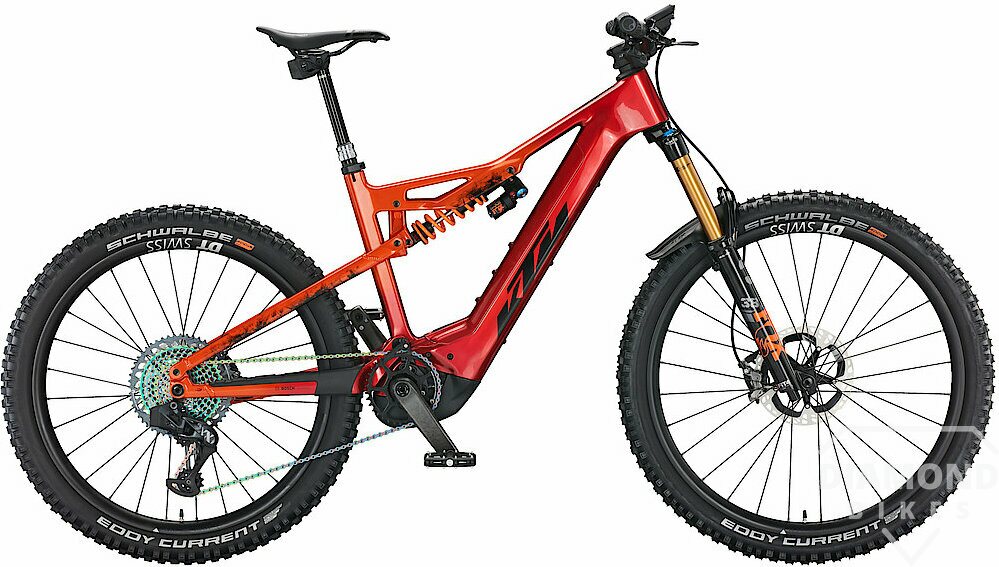

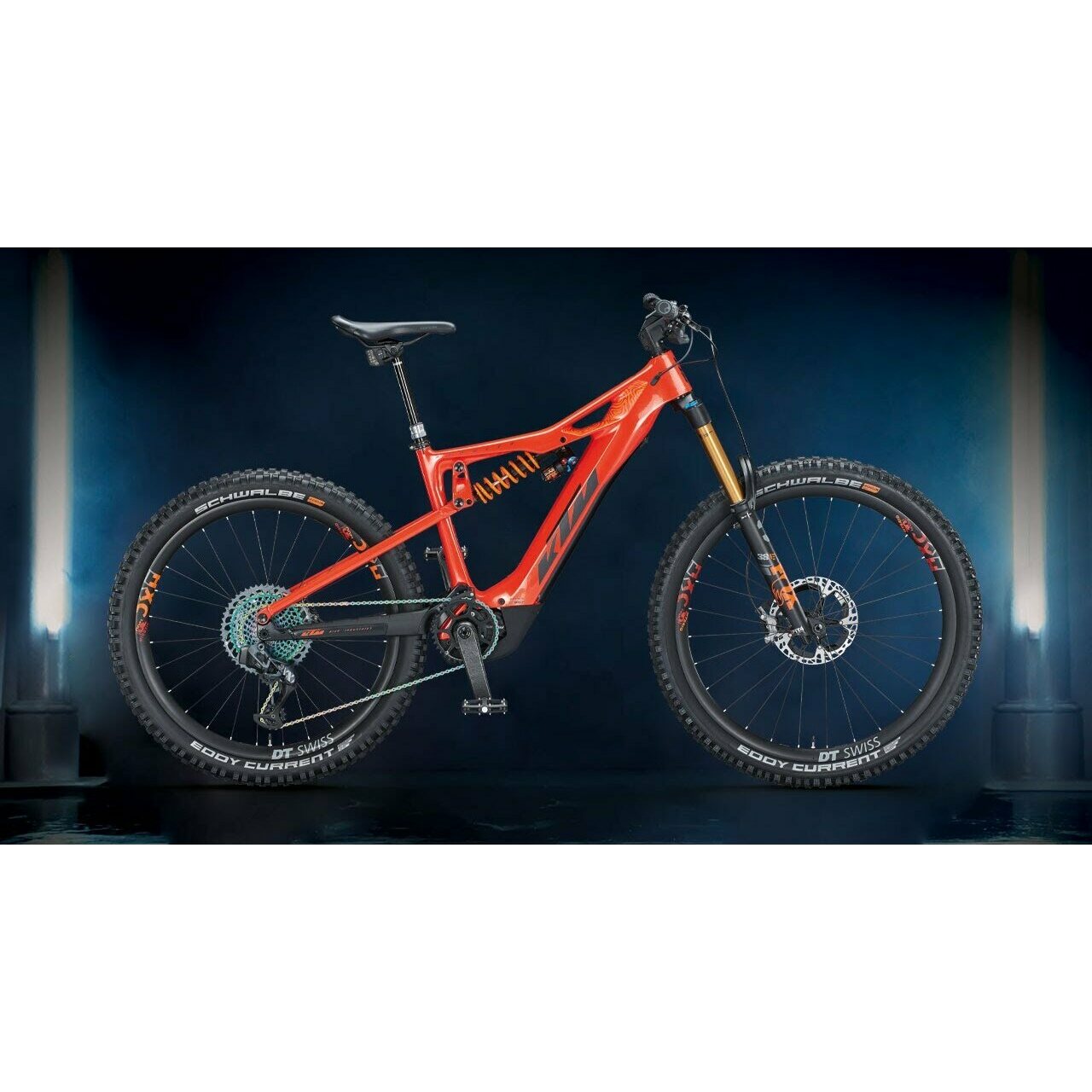

Macina Prowler Exonic
chrome red (fire orange+black) 12-G SRAM XX1 AXS



ALL IN. ALL OUT. The Ace up your jersey sleeve. With the MACINA PROWLER our development team has literally gone 'All In'. This bike has been thought through, conceived and trimmed to perfection down to the last detail. 180 mm travel at the fork and 170 mm travel at the rear quickly make it clear that this bike is intended for demanding trail and enduro use. The carbon frame is fitted with the proven DiMMiX tires: 29" wheel at the front for optimum riding stability paired with the 27,5" PLUS tires at the rear for best power transmission and traction, show all its advantages in difficult terrain. The heart of these bikes is a newly developed frame, in combination with the proven STRAIGHT-LINE-LINK (SLL) concept and the new BOSCH SMART SYSTEM. With this self-contained BOSCH system, easily recognisable by the new control unit, you are ready for the digital future. The system also includes the KIOX 300 display, the BOSCH PERFORMANCE LINE CX motor, a 4A charger and the most powerful BOSCH POWERTUBE battery ever (750WH) for even more range. In addition, the EBIKE FLOW APP opens the door to the connected world and connects you with your bike. Thanks to the masterful work of our engineers, the proven KTM frame geometry has been retained despite the new increase in battery size and capacity. Removing and reinserting the battery is easier than ever before. POWER TUBE TOP LOADER (PTTL) is the name of KTM's own innovation for this user-friendly battery handling.

Specification

E-SYSTEM BOSCH PT-CX7K4
FRAME Macina Prowler Dimmix Perf. Carbon SLL-LTE 170mm UDH; PT750 Bosch Gen.4 / M-223
FORK FOX 38 Float 29" Factory e-bike 180mm FIT4
SHOCK FOX DHX2 Factory 2Position 250x75
MOTOR Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
DISPLAY Bosch KIOX TFT Display smart system
BATTERY Bosch PowerTUBE 750Wh hor. smart system.
CHARGER Bosch STANDARD Charger 4A smart system
R. DERAILL. SRAM XX Eagle SL AXS 12speed
SHIFTLEV. SRAM Eagle AXS Rocker Paddle
CRANKSET FSA CK-702/IS Carbon 160mm
CHAINRING SRAM X-Sync 2 Eagle 36T Direct Mount
SPROCKET SRAM XX1 Eagle XG-1299 / 10-52 rainbow
CHAIN SRAM XX1 Eagle 12s
BRAKE Shimano XTR M9100 / M9120 4-Piston
ROTOR Shimano MT900 CL 203 / 180 Freeza
WHEEL F DT Swiss HXC 1501 SPLINE 29 CL 110/15TA / 622x30TSS
WHEEL R DT Swiss HXC 1501 SPLINE 27 CL 148/12TA / 584x35TSS
TIRE F Schwalbe Eddy Current Front Evo SuperTrail TLE 65-622
TIRE R Schwalbe Eddy Current Rear Evo SuperGravity TLE 70-584
GRIP Ergon GE10 Evo ergonomic
BAR KTM Prime Trail35 Carbon rizer20 800mm
STEM KTM Team Trail35 Kiox
HEADSET KTM Team eMTB 1.1/8"-1.5" angle limit
SADDLE Selle San Marco GND Open Fit Supercomfort Manganese Rails
SEATPOST RockShox Reverb AXS wireless
PEDAL MTB-Pedal flat VP-539 nylon
WEIGHT 25,2 kg
PERMISSIBLE TOTAL WEIGHT 126 kg


Geometry



M L XL
A Size 43cm 48cm 53cm
B Seattube length 430 450 480
C Toptube length 593 613 633
D Seat angle 75 75 75
E Head angle 64 64 64
F Headtube length 100 110 125
G Chainstay length 442 442 442
H Wheelbase 1226 1248 1271
I Stack 612 622 636
J Reach 432 450 467
K Standover height 816 818 820
L BB drop -3 -3 -3


Technology

PERFORMANCE LINE CX






A true powerhouse that inspires!

-> maximum torque of 85 Nm
-> powerful acceleration at a low cadence
-> powerful support even with high cadeness

Powertube 750








For long and demanding rides!

-> maximum range
-> beautiful design
-> enormous milage, long service life, reliable handling - secured by the battery-management system to protect from overload

Led Remote







The fully networked control centre!

-> quick and easy capture of all important infos
-> optimally readable independent from light conditions
-> ergonomic handling
-> connects the eBiker with the Flow App

KIOX 300









A networked on-board computer for athletic eBikers!

-> compact size and simple handling
-> optimally readable display independent from light conditions



4A Charger








Quick power!

-> quick charge, easy to use and visually appealing
-> 6 hours to fully charge the battery, 2 hours for a 50% charge



ebike flow app










Connected, forward-thinking and smart!

-> connects the users with their own eBike
-> access to numerous functions and the favorite apps
-> enables updated 'over the air'
-> new, innovative features such as theft protection







Valmistusmaa
Itävalta
